glictContainer Class Reference

#include <container.h>

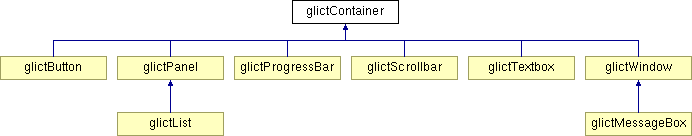

Inheritance diagram for glictContainer:

List of all members.

---

Detailed Description

Container class, base for all other widgets.

This is the Container class, which is actually a base class for all other widgets. Althought this one does not render itself, it actually contains most of reusable code for the widgets to inherit. An example of these inherited functionalities are children management, children rendering, proper clipping, mouse coordinate transformation, et al.

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 47 of file container.h.

Public Member Functions
virtual void	AddObject (glictContainer *object)
	Adds an object as a child.
bool	CastEvent (glictEvents evt, void *wparam, long lparam)
	Casts an event omitting the returnvalue. (deprecated, I'm lazy and don't want to rewrite code so I abuse namespace).
virtual bool	CastEvent (glictEvents evt, void *wparam, long lparam, void *returnvalue)
	Casts an event to the class, so it can process it. Example is mouseclick or mousedown.
void	CPaint ()
	Renders all children.
bool	DefaultCastEvent (glictEvents evt, void *wparam, long lparam, void *returnvalue)
	Casts an event into default event processor, omitting the widget's code.
void	DelayedRemove ()
	Runs delayed removal of objects.
const char *	EvtTypeDescriptor (glictEvents evt)
	Returns string with generated event.
virtual void	FixContainerOffsets ()
	Fixes container offsets. Should be used only internally.
void	Focus (glictContainer *callerchild)
	Sets the focus to the current object.
std::string	GetCaption ()
	Retrieves the caption of the control, if supported.
virtual void *	GetCustomData ()
	Allows the application programmer to retrieve previously stored custom data assigned to this object.
bool	GetEnabled ()
	Retrieves enabledness.
virtual bool	GetFocusable ()
	Allows to retrieve whether or not a widget can be focused.
float	GetHeight ()
	Returns object's height.
glictContainer *	GetParent ()
void	GetPos (glictPos *pos)
	Gets object's position and writes it into predefined type. Useful when exchanging data between library's functions.
void	GetPos (float *x, float *y)
	Gets object's position and writes it into integers x and y.
void	GetSize (glictSize *size)
	Gets object's size (height and width) and writes it into predefined type.
virtual glictPos *	GetVirtualPos ()
bool	GetVisible ()
	Retrieves visibility.
float	GetWidth ()
	Returns object's width.
float	GetX ()
	Returns object position's x coordinate.
float	GetY ()
	Returns object position's y coordinate.
	glictContainer (long guid)
	Constructor for the class, specifying guid. (Guid is unused at the moment).
	glictContainer ()
	Constructor for the class.
virtual void	Paint ()
	Renders the element. Should contain call to CPaint().
virtual void	RecursiveBoundaryFix ()
	Fixes boundaries recursively up to the root of the tree (desktop, probably). Also used to make scrollbars appear in case of virtual size, where appropriate. Should be used only internally. FIXME: Make private/protected.
void	RememberTransformations ()
	When calling parent's paint, call it's 'remember transformations' too, so clicking detection is done properly. if clicking unused, or no transformations done, then not important.
virtual void	RemoveObject (glictContainer *object)
	Removes an object that's a child.
void	ReportDebug ()
	Reports debug information to stdout.
void	ResetTransformations ()
	Resets transformations to default transf matrix (identity matrix).
void	SetCaption (const std::string caption)
	Sets the caption of the control, if supported.
virtual void	SetCustomData (void *param)
	Allows the application programmer to store custom data assigned to this object.
void	SetEnabled (bool enabled)
	Sets enabledness.
virtual void	SetFocusable (bool b)
	Allows to set whether or not a widget can be focused.
void	SetFont (std::string name, unsigned int size=10)
	Sets the name of the font to be used for rendering of any caption that the widget may be attempting to paint. Also sets the size, which may be disregarded by the font engine.
virtual void	SetHeight (float h)
	Sets object's height.
void	SetNext (glictContainer *)
void	SetOnClick (void(*OnClickFunction)(glictPos *relmousepos, glictContainer *callerclass))
	Sets a function to execute upon click. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.
void	SetOnMouseDown (void(*FunctionPtr)(glictPos *relmousepos, glictContainer *callerclass))
	Sets a function to execute upon mouse pressed down over this object. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.
void	SetOnMouseUp (void(*FunctionPtr)(glictPos *relmousepos, glictContainer *callerclass))
	Sets a function to execute upon mouse pressed down over this object. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.
void	SetOnPaint (void(*OnPaintFunction)(glictRect *real, glictRect *clipped, glictContainer *callerclass))
	Sets a function to execute whenever drawing. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.
void	SetPos (glictPos pos)
	Sets object's position using predefined type. Useful when exchanging data between library's functions.
void	SetPos (float x, float y)
	Sets object's position using classical access using two integers.
void	SetPrevious (glictContainer *)
void	SetScissor ()
	This one adjusts the clipping window through which something can be seen, and which is set by SetClip.
virtual void	SetVirtualSize (float w, float h)
void	SetVisible (bool visibility)
	Sets visibility.
virtual void	SetWidth (float w)
	Sets object's width.
void	TransformScreenCoords (glictPos *pos)
	Transforms screen coordinates into plane coordinates.
virtual void	VirtualScrollBottom ()
virtual	~glictContainer ()
	Destructor for the class.
Public Attributes
float	bottom
	Current boundaries of the widget, calculated from height, width, x and y. FIXME: Make private.
float	clipbottom
	Current clipping boundaries of the widget. Somewhat depends on the parent's clipping. FIXME: Make private.
float	clipleft
float	clipright
float	cliptop
float	containeroffsetx
float	containeroffsety
	Offsets of container object positions.
float	height
float	left
char	objtype [50]
	Short descriptive string containing name of the object. (Each class actually rewrites this one upon intialization in constructor.).
float	right
float	top
float	width
	Current height and width of the widget. FIXME: Make private/protected.
float	x
float	y
	Current position of the widget. FIXME: Make private/protected.
Protected Attributes
std::string	caption
	Caption written on the control, if control supports it.
void *	customdata
std::vector < glictContainer * >	delayedremove
bool	focusable
std::string	fontname
unsigned int	fontsize
unsigned int	guid
	Unique identifier; unused so far.
float	ModelviewMatrix [16]
	Modelview matrix, as remembered last time RememberTransformations() was called.
glictContainer *	next
std::vector < glictContainer * >	objects
	Contains all the children objects.
void(*	OnClick )(glictPos *relmousepos, glictContainer *callerclass)
	Pointer to function specified as OnClick function.
void(*	OnMouseDown )(glictPos *relmousepos, glictContainer *callerclass)
	Pointer to function specified as OnMouseDown function.
void(*	OnMouseUp )(glictPos *relmousepos, glictContainer *callerclass)
	Pointer to function specified as OnMouseUp function.
void(*	OnPaint )(glictRect *real, glictRect *clipped, glictContainer *callerclass)
	Pointer to function specified as OnPaint function.
glictContainer *	parent
	Pointer to class' parents.
glictContainer *	previous
glictPos	virtualpos
glictSize	virtualsize
Private Member Functions
void	SetClip (float left, float top, float right, float bottom)
	Internal function. Sets the clipping boundaries of the widget.
void	SetRect (float left, float top, float right, float bottom)
	Internal function. Sets the boundaries of the widget.
Private Attributes
bool	enabled
bool	visible
Friends
void	_glictMessageBox_Closer (glictPos *relmousepos, glictContainer *caller)

---

Constructor & Destructor Documentation

glictContainer::glictContainer

(

)

Constructor for the class.

It fills up the class with default infos.

Definition at line 53 of file container.cpp.

References containeroffsetx, containeroffsety, focusable, fontname, fontsize, guid, height, next, OnClick, OnMouseDown, OnMouseUp, OnPaint, parent, previous, ResetTransformations(), SetCaption(), SetClip(), SetEnabled(), SetRect(), SetVisible(), virtualpos, virtualsize, width, glictPos::x, x, glictPos::y, and y.

glictContainer::~glictContainer

(

)

[virtual]

Destructor for the class.

Only used to determine if this is the currently focused item; if so, then it sets currently focused item to NULL.

Definition at line 104 of file container.cpp.

References glictGlobalsClass::topFocused.

---

Member Function Documentation

void glictContainer::AddObject

(

glictContainer *

obj

)

[virtual]

Adds an object as a child.

Parameters:

obj

Pointer to object to add as a child. Simply inserts the passed object pointer into a vector/list of objects, also giving the child object a "this" as a parent, so the child knows who gave birth to it. Also tells it to ResetTransformations, which'd be incorrect at display, but lets us get rid of it at init time. (Oh, dear, no more biology...)

See also:

RemoveObject

Reimplemented in glictList.

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 129 of file container.cpp.

References objects, parent, RecursiveBoundaryFix(), and ResetTransformations().

Referenced by glictList::AddObject(), glictMessageBox::glictMessageBox(), and glictPanel::glictPanel().

bool glictContainer::CastEvent	(	glictEvents	evt,
		void *	wparam,
		long	lparam
	)

Casts an event omitting the returnvalue. (deprecated, I'm lazy and don't want to rewrite code so I abuse namespace).

Parameters:

	evt	Event that occured
	*wparam	Any kind of value that needs to be passed on to the function. (For example if a structure needs to be passed.)
	lparam	Numeric value that needed to be passed for event processing.

Returns:

Boolean value specifying if the event was processed at all. True means an event was caught by the widget, or by a child.

Function that can be used in case returnvalue is not necessary, meaning that caller is not interested in a result of the function. Actually just calls to regular CastEvent with returnvalue set to NULL. See the regular CastEvent for more info.

See also:

CastEvent(glictEvents, void*, long, void*);

Definition at line 787 of file container.cpp.

References CastEvent().

bool glictContainer::CastEvent	(	glictEvents	evt,
		void *	wparam,
		long	lparam,
		void *	returnvalue
	)			[virtual]

Casts an event to the class, so it can process it. Example is mouseclick or mousedown.

Parameters:

	evt	Event that occured
	*wparam	Any kind of value that needs to be passed on to the function. (For example if a structure needs to be passed.)
	lparam	Numeric value that needed to be passed for event processing.
	*returnvalue	Return value, if any, will be stored here. If NULL, no return value shall be stored.

Returns:

Boolean value specifying if the event was processed at all. True means an event was caught by the widget, or by a child.

Unlike other UI libraries, this library has one philosophy and that is it does not like hooking to any of the windowing system's functions; it does not depend upon either GLUT, Windows, Linux or MacOS. Widgets are receiving user feedback upon being told that user made some. They are told this by the program that uses this library. Example of this action is that in, let's say, GLUT the program receives a call to mouse() function. Upon this, the program casts an event using this function to the widget which then processes what should actually happen. A button, for example, would upon a mouseclick call to OnClick function.

The thing is, this CastEvent function first tries to tell its children that the event happened, and upon being told by each of them that they didn't do anything with the event, goes on with processing it itself.

Container class does not do anything except pushing events on to DefaultCastEvent.

See also:

DefaultCastEvent()

Reimplemented in glictButton, glictPanel, glictScrollbar, glictTextbox, and glictWindow.

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 820 of file container.cpp.

References DefaultCastEvent(), GetEnabled(), GetVisible(), and GLICT_MOUSECLICK.

Referenced by CastEvent(), and DefaultCastEvent().

void glictContainer::CPaint

(

)

Renders all children.

CPaint() is used to render "all the small things". All children are properly rendered here, with calls to SetScissor() and then to Paint(), and although the call to SetScissor() might be unnecessary it's always good to do things twice if you're not certain. After that Paint() of each object is called.

So, we have a loop that goes through the objects vector/list, then calls for each object the SetScissor() and then Paint().

Prior to rendering, however, the delayedremove vector is checked out and all objects requested are removed.

This f. is used within Paint(); actually there should be no reason for this function to be used except internally when writing a widget. You may be more interested in the Paint() method.

See also:

Paint()

Definition at line 520 of file container.cpp.

References glictGlobalsClass::clippingMode, containeroffsetx, containeroffsety, DelayedRemove(), glictGlobalsClass::drawPartialOut, GetHeight(), GetWidth(), GLICT_SCISSORTEST, GLICT_STENCILTEST, objects, glictGlobalsClass::Translatef(), virtualpos, glictPos::x, and glictPos::y.

Referenced by glictWindow::Paint(), glictTextbox::Paint(), glictScrollbar::Paint(), glictProgressBar::Paint(), glictPanel::Paint(), Paint(), and glictButton::Paint().

bool glictContainer::DefaultCastEvent	(	glictEvents	evt,
		void *	wparam,
		long	lparam,
		void *	returnvalue
	)

Casts an event into default event processor, omitting the widget's code.

Parameters:

	evt	Event that occured
	*wparam	Any kind of value that needs to be passed on to the function. (For example if a structure needs to be passed.)
	lparam	Numeric value that needed to be passed for event processing.
	*returnvalue	Return value, if any, will be stored here. If NULL, no return value shall be stored.

Returns:

Boolean value specifying if the event was processed at all. True means an event was caught by the widget, or by a child.

This function does default processing of event, so that each widget does not have to reinvent the wheel. If the widget does not want to process an event, it simply can call upon this function.

There is very little practical use for this function apart from internal use when making a widget. You may be more interested in classical CastEvent().

For external use you should only use CastEvent().

For more information on how the event system works, see the CastEvent() as well. You'll also read of parameters there, as well as return value.

See also:

CastEvent(glictEvents evt, void* wparam, long lparam, void* returnvalue)

Todo:

Clicking must be handled via verifying if an element has been rendered on certain pixel, not the way it's done right now. Currently we cannot do custom-shaped widgets, only rectangle widgets! (This todo is not strictly related to this function.)

Definition at line 619 of file container.cpp.

References CastEvent(), clipbottom, clipright, containeroffsetx, containeroffsety, Focus(), focusable, GLICT_KEYDOWN, GLICT_KEYPRESS, GLICT_KEYUP, GLICT_MOUSECLICK, GLICT_MOUSEDOWN, GLICT_MOUSEUP, glictGlobalsClass::lastMousePos, left, objects, objtype, OnClick, OnMouseDown, OnMouseUp, top, glictGlobalsClass::topFocused, virtualpos, glictPos::x, x, y, and glictPos::y.

Referenced by glictWindow::CastEvent(), glictTextbox::CastEvent(), glictScrollbar::CastEvent(), glictPanel::CastEvent(), CastEvent(), and glictButton::CastEvent().

void glictContainer::DelayedRemove

(

)

Runs delayed removal of objects.

Executes the delayedremoval.

Definition at line 165 of file container.cpp.

References delayedremove, and objects.

Referenced by CPaint().

const char * glictContainer::EvtTypeDescriptor

(

glictEvents

evt

)

Returns string with generated event.

This function goes all the way up to the root of the tree and fixes the boundaries from up there, making sure clipping occurs properly.

This function should be used only internally. Describes event being passed as the parameter and returns its name as a string. For debugging purposes.

Definition at line 1188 of file container.cpp.

References GLICT_MOUSECLICK, GLICT_MOUSEDOWN, and GLICT_MOUSEUP.

void glictContainer::FixContainerOffsets

(

)

[virtual]

Fixes container offsets. Should be used only internally.

In case user sets a new skin, we need to fix container offsets. Each widget should redefine it and use appropriate skin element's properties.

This function should be used only internally.

Reimplemented in glictWindow.

Definition at line 1218 of file container.cpp.

Referenced by SetPos().

void glictContainer::Focus

(

glictContainer *

callerchild

)

Sets the focus to the current object.

Parameters:

callerchild

This object's child that asks this object to focus.

Sets the focus to the current object. Parameter is either the child that has called the focusing function, or NULL to signify that there is no child to refocus here, that the widget is supposed only to refocus itself.

In applications, you should mostly use NULL argument.

Definition at line 1107 of file container.cpp.

References Focus(), focusable, objects, parent, and glictGlobalsClass::topFocused.

Referenced by glictWindow::CastEvent(), glictTextbox::CastEvent(), glictScrollbar::CastEvent(), glictButton::CastEvent(), DefaultCastEvent(), Focus(), and glictMessageBox::glictMessageBox().

std::string glictContainer::GetCaption

(

)

Retrieves the caption of the control, if supported.

Returns:

Caption of the object.

If the object that derived from this class supports captions, then this function will get the caption being displayed on it.

Definition at line 1086 of file container.cpp.

References caption.

void * glictContainer::GetCustomData

(

)

[virtual]

Allows the application programmer to retrieve previously stored custom data assigned to this object.

Todo:

Document this function

Definition at line 1234 of file container.cpp.

References customdata.

bool glictContainer::GetEnabled

(

)

Retrieves enabledness.

Returns:

Boolean, object's "enabledness"

Retrieves whether the object is enabled or not.

Definition at line 1171 of file container.cpp.

References enabled.

Referenced by glictWindow::CastEvent(), glictTextbox::CastEvent(), glictPanel::CastEvent(), CastEvent(), and glictButton::CastEvent().

float glictContainer::GetHeight

(

)

Returns object's height.

Returns:

Current height of the object.

Retrieves height of the object and returns it as a value.

See also:

SetHeight(float h), GetSize(glictSize* size)

Definition at line 326 of file container.cpp.

References height.

Referenced by CPaint().

glictContainer * glictContainer::GetParent

(

)

Obtains the current object's parent, as stored in parent variable.

Definition at line 1093 of file container.cpp.

References parent.

void glictContainer::GetPos

(

glictPos *

pos

)

Gets object's position and writes it into predefined type. Useful when exchanging data between library's functions.

Parameters:

*pos

Pointer to struct where coordinates should be saved.

This function puts the current object's position (relative to parent) into specified memory locations.

See also:

SetPos(glictPos pos), GetPos(float *x, float *y)

Definition at line 292 of file container.cpp.

References x, glictPos::x, y, and glictPos::y.

void glictContainer::GetPos	(	float *	x,
		float *	y
	)

Gets object's position and writes it into integers x and y.

Parameters:

	*x	Pointer where X coordinate should be saved.
	*y	Pointer where Y coordinate should be saved.

This function puts the current object's position (relative to parent) into specified memory locations.

See also:

SetPos(float x, float y), GetPos(glictPos *pos)

Bug:

Possible containeroffset*-based problem, manifests upon moving of a window which is a child of another window by dragging. See also bugnote in glictWindow::CastEvent()

Definition at line 280 of file container.cpp.

void glictContainer::GetSize

(

glictSize *

size

)

Gets object's size (height and width) and writes it into predefined type.

Parameters:

*size

Pointer to which the size of object should be saved.

Retrieves width and height and puts it into a structure specified by the pointer.

See also:

SetWidth(float w), SetHeight(float h)

Definition at line 305 of file container.cpp.

References glictPos::h, height, glictPos::w, and width.

bool glictContainer::GetVisible

(

)

Retrieves visibility.

Returns:

Boolean, object's visibility

Retrieves whether the object is visible or not.

Definition at line 1149 of file container.cpp.

References visible.

Referenced by glictWindow::CastEvent(), glictTextbox::CastEvent(), glictScrollbar::CastEvent(), glictPanel::CastEvent(), CastEvent(), glictButton::CastEvent(), glictWindow::Paint(), glictTextbox::Paint(), glictScrollbar::Paint(), glictPanel::Paint(), glictMessageBox::Paint(), Paint(), and glictButton::Paint().

float glictContainer::GetWidth

(

)

Returns object's width.

Returns:

Current width of the object.

Retrieves width of the object and returns it as a value.

See also:

SetWidth(int w), GetSize(glictSize* size)

Definition at line 316 of file container.cpp.

References width.

Referenced by CPaint().

void glictContainer::Paint

(

)

[virtual]

Renders the element. Should contain call to CPaint().

(This description applies for the glictContainer::Paint(). If you are reading it for some other class, then its documentation is not written yet for this function.)

In glictContainer class, Paint does nothing except calling SetScissor() and CPaint(). This is because as a widget the container class does not render anything; it serves as a point of divergence for other classes. Other widgets should define their own procedure with these two calls as a minimum.

When writing a widget, put SetScissor() on the beginning of this function, and CPaint() on the end.

See also:

SetScissor(), CPaint()

Reimplemented in glictButton, glictMessageBox, glictPanel, glictProgressBar, glictScrollbar, glictTextbox, and glictWindow.

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 493 of file container.cpp.

References CPaint(), GetVisible(), and SetScissor().

void glictContainer::RecursiveBoundaryFix

(

)

[virtual]

Fixes boundaries recursively up to the root of the tree (desktop, probably). Also used to make scrollbars appear in case of virtual size, where appropriate. Should be used only internally. FIXME: Make private/protected.

This function goes all the way up to the root of the tree and fixes the boundaries from up there, making sure clipping occurs properly.

This function should be used only internally.

Definition at line 1205 of file container.cpp.

References parent, RecursiveBoundaryFix(), SetPos(), x, and y.

Referenced by AddObject(), RecursiveBoundaryFix(), SetHeight(), and SetWidth().

void glictContainer::RememberTransformations

(

)

When calling parent's paint, call it's 'remember transformations' too, so clicking detection is done properly. if clicking unused, or no transformations done, then not important.

Function collects the OpenGL's modelview matrix, and remembers whatever state it currently is in. It is later used in TransformScreenCoords(). It is not necessary to call this function unless you wish to perform a transformation on user interface, for example rotation. If you do not do this kind of thing, you do not need to call this function.

This also makes all children remember their transformation.

See also:

TransformScreenCoords(glictPos *pos)

Definition at line 873 of file container.cpp.

References ModelviewMatrix, and objects.

void glictContainer::RemoveObject

(

glictContainer *

object

)

[virtual]

Removes an object that's a child.

Parameters:

obj

Pointer to object to remove.

Adds the object to delayed-remove vector, which means the object will be removed upon next call to CPaint() before real painting. Note: object stored in pointer is not touched and if dynamically created it must be manually cleaned up.

See also:

AddObject(glictContainer* obj)

Reimplemented in glictList.

Definition at line 148 of file container.cpp.

References delayedremove.

Referenced by glictList::RemoveObject(), and glictMessageBox::~glictMessageBox().

void glictContainer::ReportDebug

(

)

Reports debug information to stdout.

Debugging function that reports some info about the current object, such as its name, height, width, position et al.

Definition at line 896 of file container.cpp.

References bottom, clipbottom, clipleft, clipright, cliptop, guid, height, left, objects, objtype, right, top, width, x, and y.

void glictContainer::ResetTransformations

(

)

Resets transformations to default transf matrix (identity matrix).

Sets coordinate transformations to identity matrix.

Definition at line 113 of file container.cpp.

References ModelviewMatrix.

Referenced by AddObject(), and glictContainer().

void glictContainer::SetCaption

(

const std::string

caption

)

Sets the caption of the control, if supported.

Parameters:

caption

Caption that's to be set

If the object that derived from this class supports captions, then this function will change the caption being displayed on it.

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 1077 of file container.cpp.

Referenced by glictTextbox::CastEvent(), glictContainer(), glictMessageBox::glictMessageBox(), glictWindow::glictWindow(), glictTextbox::Paint(), and glictMessageBox::SetMessage().

void glictContainer::SetClip	(	float	left,
		float	top,
		float	right,
		float	bottom
	)			[private]

Internal function. Sets the clipping boundaries of the widget.

Parameters:

	left	Left clipping boundary of the object.
	top	Top clipping boundary of the object.
	right	Right clipping boundary of the object.
	bottom	Bottom clipping boundary of the object.

Internal use function that sets the display related, clipping boundaries of the object. Note, these are the display-related boundaries, they are visible on screen. To set internal boundaries use SetRect().

These functions can be overridden, always use SetPos(), SetWidth(), SetHeight() and other related functions!

See also:

SetRect(float left, float top, float right, float bottom)

SetPos(float x, float y), SetPos(glictPos pos), SetWidth(float w), SetHeight(float h)

Definition at line 383 of file container.cpp.

References clipbottom, clipleft, clipright, and cliptop.

Referenced by glictContainer(), and SetRect().

void glictContainer::SetCustomData

(

void *

param

)

[virtual]

Allows the application programmer to store custom data assigned to this object.

Todo:

Document this function

Definition at line 1227 of file container.cpp.

References customdata.

void glictContainer::SetEnabled

(

bool

enabled

)

Sets enabledness.

Parameters:

enabled

Object's "enabledness"

Sets whether the object is enabled or not.

Reimplemented in glictMessageBox.

Definition at line 1159 of file container.cpp.

Referenced by glictContainer(), and glictMessageBox::SetEnabled().

void glictContainer::SetFont	(	std::string	name,
		unsigned int	size = 10
	)

Sets the name of the font to be used for rendering of any caption that the widget may be attempting to paint. Also sets the size, which may be disregarded by the font engine.

Parameters:

	name	Font name
	size	Font size

Sets using which font should this widget be rendered.

Definition at line 1269 of file container.cpp.

References fontname, and fontsize.

void glictContainer::SetHeight

(

float

h

)

[virtual]

Sets object's height.

Parameters:

h

Height to which the object should be set.

This function sets up the current object's height and the object's boundaries properly, to whatever values they should be set.

See also:

SetWidth(float w), GetSize(glictSize* size)

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 190 of file container.cpp.

References height, and RecursiveBoundaryFix().

Referenced by glictMessageBox::glictMessageBox(), glictScrollbar::glictScrollbar(), glictTextbox::glictTextbox(), glictWindow::glictWindow(), glictPanel::Paint(), glictList::RemoveObject(), and glictMessageBox::SetHeight().

void glictContainer::SetNext

(

glictContainer *

n

)

Parameters:

n

'next' widget

When Shift+Tab is pressed, focus should switch to n widget.

Definition at line 1288 of file container.cpp.

References next.

void glictContainer::SetOnClick

(

void(*)(glictPos *relmousepos, glictContainer *callerclass)

f

)

Sets a function to execute upon click. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.

Sets an OnClick function that would a, for example, button use.

Definition at line 836 of file container.cpp.

References OnClick.

Referenced by glictMessageBox::glictMessageBox().

void glictContainer::SetOnMouseDown

(

void(*)(glictPos *relmousepos, glictContainer *callerclass)

f

)

Sets a function to execute upon mouse pressed down over this object. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.

Sets an OnMouseDown function.

Definition at line 843 of file container.cpp.

References OnMouseDown.

void glictContainer::SetOnMouseUp

(

void(*)(glictPos *relmousepos, glictContainer *callerclass)

f

)

Sets a function to execute upon mouse pressed down over this object. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.

Sets an OnMouseUp function.

Definition at line 849 of file container.cpp.

References OnMouseUp.

void glictContainer::SetOnPaint

(

void(*)(glictRect *real, glictRect *clipped, glictContainer *callerclass)

f

)

Sets a function to execute whenever drawing. OBJECT MUST NOT DESTROY ITSELF OR REMOVE ITSELF FROM OBJECT LIST OF ITS PARENT FROM WITHIN.

Sets an OnPaint function that would a, for example, button use.

Todo:

Not all widgets obey OnPaint.

Definition at line 858 of file container.cpp.

References OnPaint.

void glictContainer::SetPos

(

glictPos

pos

)

Sets object's position using predefined type. Useful when exchanging data between library's functions.

Parameters:

pos

Position specified in a struct, relative to parent.

This function sets up the current object's position and the object's boundaries properly, to whatever values they should be set.

See also:

SetPos(float x, float y), GetPos(glictPos *pos)

Definition at line 265 of file container.cpp.

References SetPos(), glictPos::x, and glictPos::y.

void glictContainer::SetPos	(	float	x,
		float	y
	)

Sets object's position using classical access using two integers.

Parameters:

	x	X coordinate of the object, relative to parent
	y	Y coordinate of the object, relative to parent

This function sets up the current object's position and the object's boundaries properly, to whatever values they should be set.

See also:

SetPos(glictPos pos), GetPos(float *x, float *y)

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 215 of file container.cpp.

References containeroffsetx, containeroffsety, FixContainerOffsets(), glictPos::h, height, left, objects, parent, SetRect(), top, virtualpos, glictPos::w, width, glictPos::x, and glictPos::y.

Referenced by glictWindow::CastEvent(), glictPanel::CastEvent(), glictMessageBox::glictMessageBox(), glictScrollbar::glictScrollbar(), glictWindow::glictWindow(), glictPanel::Paint(), RecursiveBoundaryFix(), glictMessageBox::SetHeight(), SetPos(), and glictMessageBox::SetWidth().

void glictContainer::SetPrevious

(

glictContainer *

p

)

Parameters:

p

'previous' widget

When Tab is pressed, focus should switch to p widget.

Definition at line 1279 of file container.cpp.

References previous.

void glictContainer::SetRect	(	float	left,
		float	top,
		float	right,
		float	bottom
	)			[private]

Internal function. Sets the boundaries of the widget.

Parameters:

	left	Left boundary of the object.
	top	Top boundary of the object.
	right	Right boundary of the object.
	bottom	Bottom boundary of the object.

Internal use function that sets the boundaries of the object. Note, these are not the display-related boundaries, they are imaginary boundaries. To set the display-related boundaries use SetClip().

These functions can be overridden, always use SetPos(), SetWidth(), SetHeight() and other related functions!

See also:

SetClip(float left, float top, float right, float bottom)

SetPos(float x, float y), SetPos(glictPos pos), SetWidth(float w), SetHeight(float h)

Definition at line 348 of file container.cpp.

References clipbottom, clipleft, clipright, cliptop, max, min, parent, and SetClip().

Referenced by glictContainer(), and SetPos().

void glictContainer::SetScissor

(

)

This one adjusts the clipping window through which something can be seen, and which is set by SetClip.

Sets up scissoring of the current object. Should be called withing Paint() function. If necessary, it can be manually called by program that uses the library, however in most cases it should not be necessary.

Note: although named SetScissor, GLICT can be set to use either scissor or stencil testing. This is so that special transformations can be painlessly used on entire GUI, which was one of goals in making the library. Default mode is scissor test for performance, scissoring/clipping can be turned off in glictGlobals's member clippingTest, or can be set to scissor testing.

It is up to main program to enable or disable appropriate stencil/scissor test.

If using scissor test, then you MUST update the glictGlobals.h, although that is always recommended. glictGlobals.h must contain current viewport height.

See also:

Paint(), CPaint(), glictGlobals::clippingMode

Definition at line 427 of file container.cpp.

References glictGlobalsClass::clippingMode, GLICT_SCISSORTEST, GLICT_STENCILTEST, glictGlobalsClass::h, ModelviewMatrix, and glictGlobalsClass::PaintRect().

Referenced by glictWindow::Paint(), glictScrollbar::Paint(), glictProgressBar::Paint(), Paint(), and glictButton::Paint().

void glictContainer::SetVirtualSize	(	float	w,
		float	h
	)			[virtual]

Parameters:

	w	Virtual width
	h	Virtual height

Sets the extended, virtual width and height of the panel, the total area which can be accessed using scrollbars that become visible unless the virtual width and height are set to zero or smaller than real width and height.

If virtual width and height are set to smaller than real width and height, they are simply ignored.

Reimplemented in glictPanel.

Definition at line 1251 of file container.cpp.

References glictPos::h, virtualsize, and glictPos::w.

Referenced by glictPanel::SetVirtualSize().

void glictContainer::SetVisible

(

bool

vsbl

)

Sets visibility.

Parameters:

vsbl

New value for visibility

Sets whether the object is visible or not.

Definition at line 1139 of file container.cpp.

References visible.

Referenced by glictContainer(), glictPanel::glictPanel(), glictPanel::Paint(), and glictMessageBox::SetEnabled().

void glictContainer::SetWidth

(

float

w

)

[virtual]

Sets object's width.

Parameters:

w

Width to which the object should be set.

This function sets up the current object's height and the object's boundaries properly, to whatever values they should be set.

See also:

SetHeight(float h), GetSize(glictSize* size)

Reimplemented in glictList.

Examples:

examples/memory/main.cpp, and examples/memory_sdl/main.cpp.

Definition at line 202 of file container.cpp.

References RecursiveBoundaryFix(), and width.

Referenced by glictMessageBox::glictMessageBox(), glictScrollbar::glictScrollbar(), glictTextbox::glictTextbox(), glictWindow::glictWindow(), glictPanel::Paint(), glictMessageBox::SetWidth(), and glictList::SetWidth().

void glictContainer::TransformScreenCoords

(

glictPos *

pos

)

Transforms screen coordinates into plane coordinates.

Parameters:

*pos

Coordinates to transform. Result gets placed here as well.

Using the modelview matrix that was stored using the RememberTransformations() this function will create an inverse matrix of the modelview matrix and multiply the original coordinates by it, storing the result in the input parameter.

Warning:

Watch out, *pos gets overwritten!

See also:

RememberTransformations()

Bug:

This function does not work properly the way it should, it should be inspected whether the float/double precision is causing problems or something else. It is also certain that there is some other problem within this function as certain translation transfo's don't work.

Todo:

Scale is not operational, look into that. (Mathematicians, please come to aid.)

This only takes modelview matrix into account, while we should take projection matrix into account as well.

Definition at line 931 of file container.cpp.

References ModelviewMatrix, glictPos::x, and glictPos::y.

void glictContainer::VirtualScrollBottom

(

)

[virtual]

Scrolls to the virtual area's bottom. Container has it EMPTY because it does not directly support virtual area.

Reimplemented in glictPanel.

Definition at line 1259 of file container.cpp.

---

Friends And Related Function Documentation

void _glictMessageBox_Closer	(	glictPos *	relmousepos,
		glictContainer *	caller
	)			[friend]

Todo:

Remove this friend!

Reimplemented in glictMessageBox.

Definition at line 22 of file messagebox.cpp.

---

The documentation for this class was generated from the following files:

• GLICT/container.h
• GLICT/container.cpp

---

generated with doxygen 1.5.3 on Mon Oct 29 18:09:27 2007
